Leupold Mark 4 AR Mounting System 30mm
Part No.:
100-182860 |
Availability:
In Stock
Part No.:
100-182860
Product information

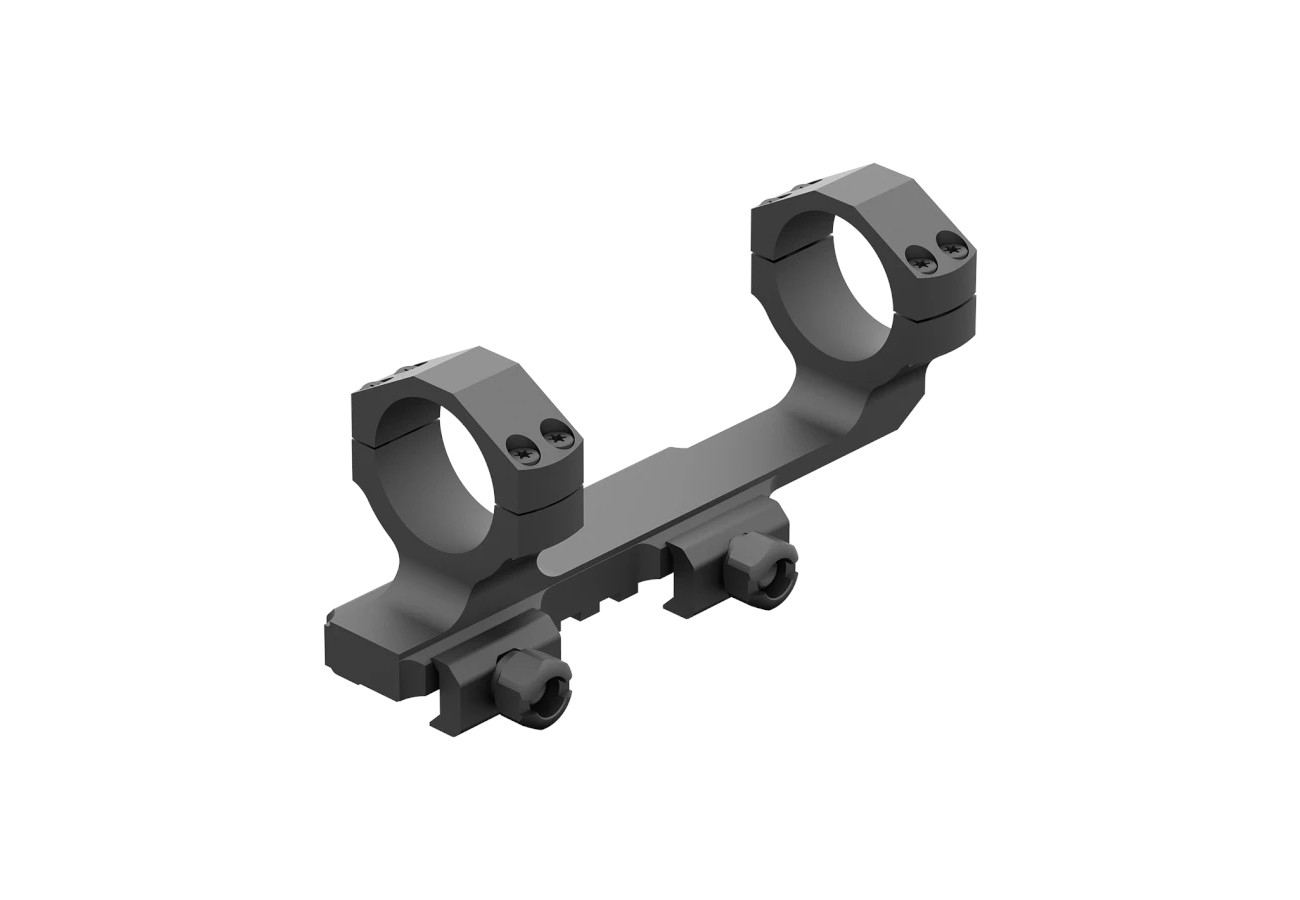

The Mark 4 AR 30mm Integrated Mounting System (IMS) features a CNC-machined, one-piece aluminum base and ring design. It is made to fit any AR-style rifle with a standard Picatinny (MIL-STD-1913) rail and any scope with a 30mm diameter main tube.
Specifications
- Material: Aluminum
- Base Cant: No
- Ring Height: 1.5"
- Weight: 6 oz
- Keeper Clamp Torque: 65 in-lbs
- Ring Top Screw Torque: 28 in-lbs
- Length: 6.01"
- Rear Offset: 1.4"
- Ring Depth: .65"
- Length Within Rings: 3.34"
- Keeper Length: 4.95"
- Front Offset: 1.06"
- Ring Width: 1.98"
- Ring Height: 1.5"
| Box Quantity: | 1 |
|---|---|
| Capacity/Size/Volume: | 30mm |
| Country Of Origin: | USA |
| Diameter: | 30mm |
| Membership: | General |
| Model: | Mark 4 |
| Prepayment Required: | No |
