Leupold Mark IMS Mounting System 34mm
Part No.:
100-176882 |
Availability:
Out of Stock
Part No.:
100-176882
Product information

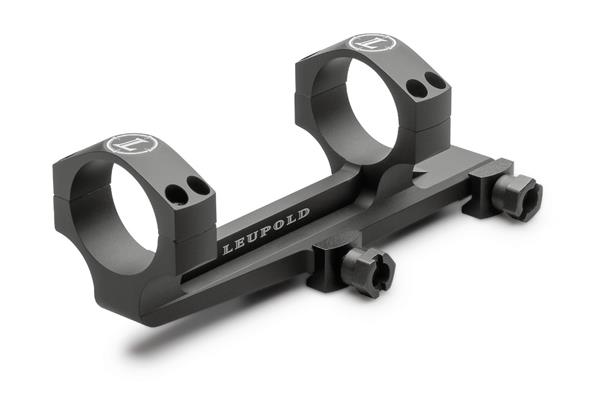

The Mark IMS™ family easily eliminates the two most common issues faced when mounting standard riflescopes to AR-style rifles; scope height and eye relief. This model is designed to fit your AR's MIL-spec 1913/Picatinny rail and any scope with a 34mm maintube.
Specifications
- Material: Aluminum
- Base Cant: No
- Ring Height: 1.5"
- Weight: 6 oz
- Keeper Clamp Torque: 65 in-lbs
- Ring Top Screw Torque: 28 in-lbs
- Length: 6.01"
- Rear Offset: 1.4"
- Ring Depth: .65"
- Length Within Rings: 3.34"
- Keeper Length: 4.95"
- Front Offset: 1.06"
- Ring Width: 1.98"
- Ring Height: 1.5"
| Box Quantity: | 1 |
|---|---|
| Capacity/Size/Volume: | 34mm |
| Color: | Black |
| Country Of Origin: | USA |
| Diameter: | 34mm |
| Finish: | Matte |
| Hand Orientation: | Right-Handed |
| Membership: | General |
| Model: | Mark IMS |
| Prepayment Required: | No |
